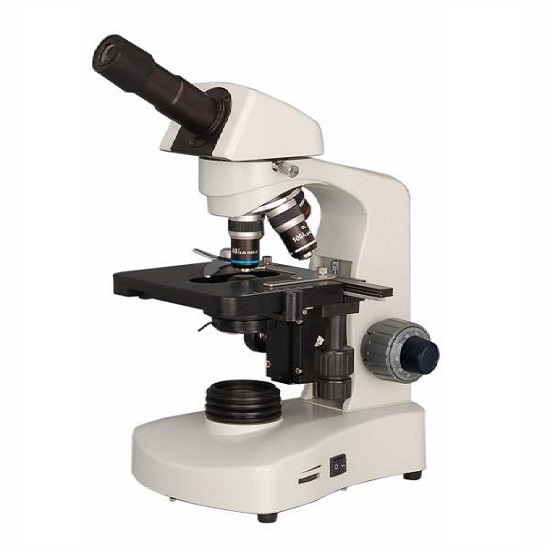

Monocular Microscope (BX-200M)
BX-200M
Introduction
BX-200M microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which saves energy, has long working life and also comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Built-in rechargeable battery is optional for outdoors operation or places that power supply is not stable.
Application:
BX-200M microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.
Features
- Comfortable operation with updated and ergonomic design;
- LED light illumination, save energy and long working life;
- Compact and flexible, ideally suited for desktop, laboratory worktable.
Technical Specifications
| Item | Specification | ||
| Viewing Head | Monocular Head with digital camera, Inclined at 30°, 360° Rotatable | ||
| Seidentopf Binocular Head with digital camera, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | |||
| Camera System | Resolution | 1280×1024 (1.3Mega Pixel) | |
| Output Mode | USB2.0 | ||
| Operation System | Window 2000/ XP/ Vista/ Win 7 | ||
| Software | ScopeImage 9.0 | ||
| Range of Viewing Field | 90% | ||
| Eyepiece | WF10×/18mm | ||
| Nosepiece | Backward Quadruple Nosepiece | ||
| Objective | Achromatic Objective 4×, 10×, 40×, 100× | ||
| Stage | Double Layers Mechanical Stage 132×142mm/ 75×40mm | ||
| Condenser | Abbe NA1.20 with Iris Diaphragm & Fliter | ||
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 32.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm | ||
| Illumination | 1W S-LED illumination, Brightness Adjustable | ||
| Package | 1pcs/carton, 39.5cm*26.5cm*50cm, 8kg | ||
