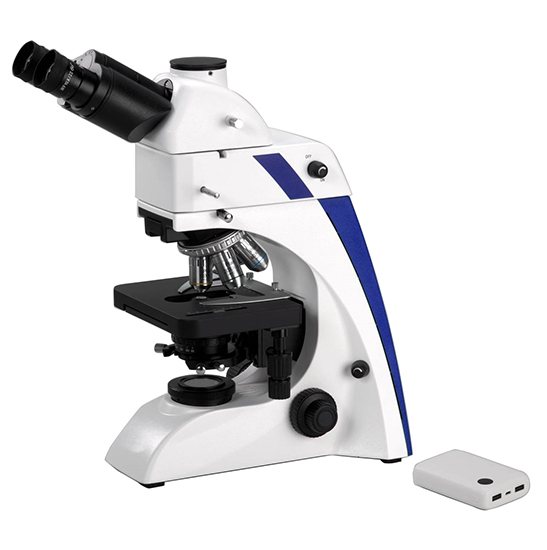

Trinocular Microscope (BX-400T)
Introduction
BX-400T microscope is high quality biological microscope, designed for universities or laboratories of biomedicine and other fields, can be used for teaching experiments and medical testing. Innovation design style, high quality and convenient, to bring you a simple and comfortable use experience.
Features
1. Outstanding infinity color corrected optical systemInfinity color corrected system, professional plan achromatic objectives and cutting-edge microscopy technology, provide microscopic images with high resolution, high definition and high contrast.
2.22mm wide fieldBS-2047FB biological microscope can achieve a wide field of view range of 22mm under 10X eyepiece, which is more efficient and perfect for observation. Professional high eye point and wide field plan eyepiece can effectively correct edge distortion and chromatic aberration.
3. Rotatable viewing tubeViewing tube with gemel group 360°rotation function, adjustable pupil distance, eye point height, for different height of the operator to provide a more flexible and comfortable experience.
4. Super large ceramic rack less stage Double-layer mechanical stage, large arc shape, no angular design. The stage surface adopts ceramic paint process, high hardness, corrosion resistance. Damping-type double clips can be placed two slices at the same time, for inspection and comparative analysis.
5. Super endurance function The body is equipped with a Type-C interface, which allows the microscope to use a portable battery as a power source. The microscope thus frees itself from dependence on power outlets, enabling easy use outdoors or in power outages. The body comes with a standard USB port, that allows the microscope to charge a phone or tablet.
Charge the microscope by the portable battery
Charge cell phones and tablets by the microscope
6. With ECO energy-saving working mode Build-in ECO function, no operation for 30 minutes, the system will automatically turn off and into the standby mode. Users can automatically wake up the light source by touching the dimming knob.
7. User-friendly design increases comfort and safetyBS-2047FB is equipped with a secure handle for moving. Fully concealed locking design eliminates all sharp edges. Low hand coarse and fine coaxial focus system is ergonomically designed to give the user maximum comfort. There is a storage device at the back of the body to ensure the cleanliness, saving storage space and improving portability.
8. Flexible manipulation of the LED fluorescent module The innovative reflected LED fluorescence device greatly simplifies the operation process of the fluorescence microscope, making the microscopy experiment more simple, safe and efficient.With light source brightness adjustment knob according to the characteristics of different specimens to set the appropriate illumination brightness. Rotating bright field / fluorescence switch knob, convenient for users to achieve easy conversion between transmitted light illumination and reflected fluorescence illumination.
9. Body power supply function Built in 12V 1A transformer can directly charges the fluorescent illumination, easy to connect and safe to use.
10. Simple brightness adjustment knob and easy switching of bright field / fluorescent By adjusting the knob, you can adjust the intensity of LED fluorescent lighting to get the required light.According to the application needs, rotate the bright field / fluorescent switch knob, you can instantly achieve two kinds of observation switchover.Switch to the fluorescence channel and use the LED fluorescence intermediate module to perform fluorescence observation for TB detection or immunofluorescence analysis and in vivo cell observation.Switching to the bright field channel allows the use of transmitted light for routine pathological testing or laboratory observation.
